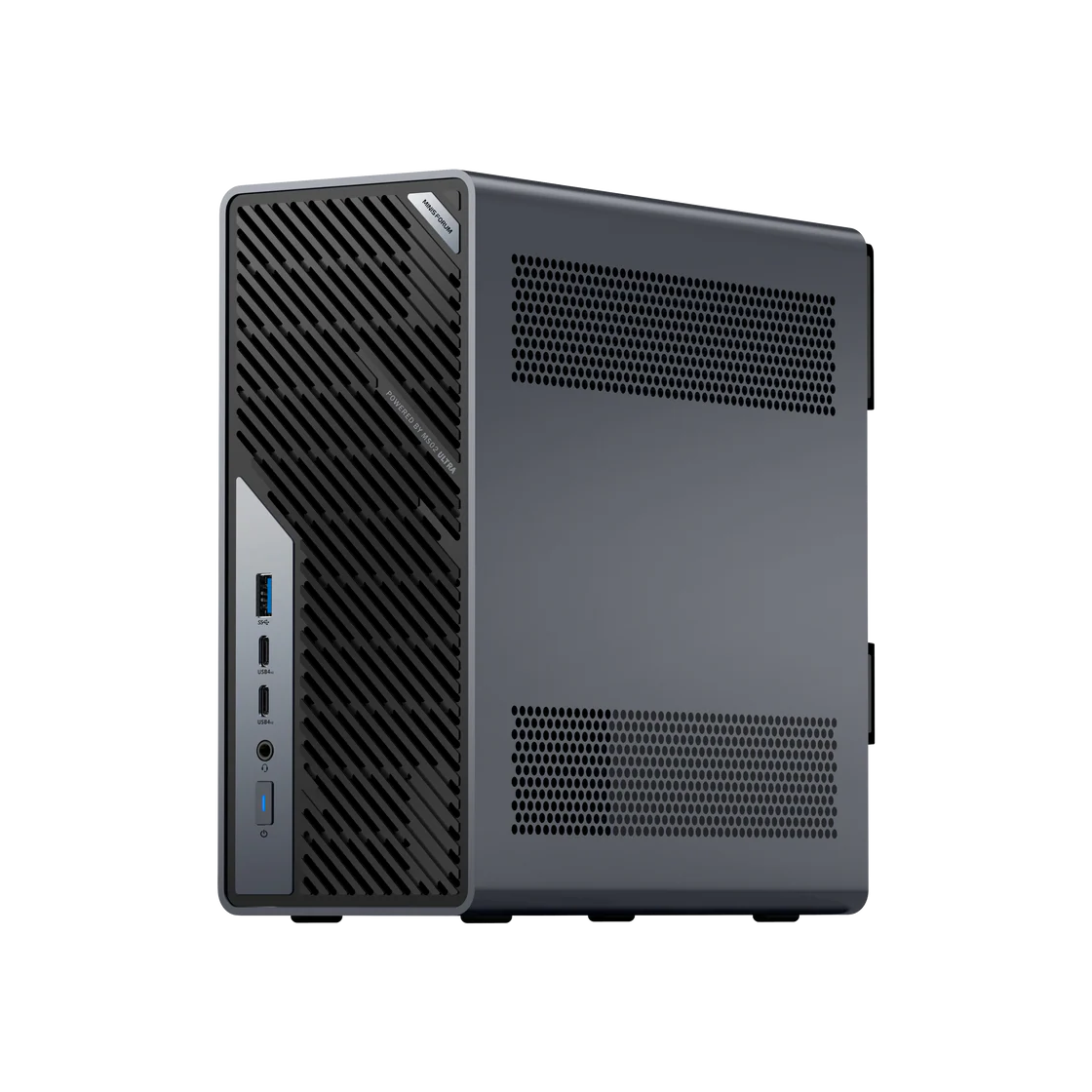

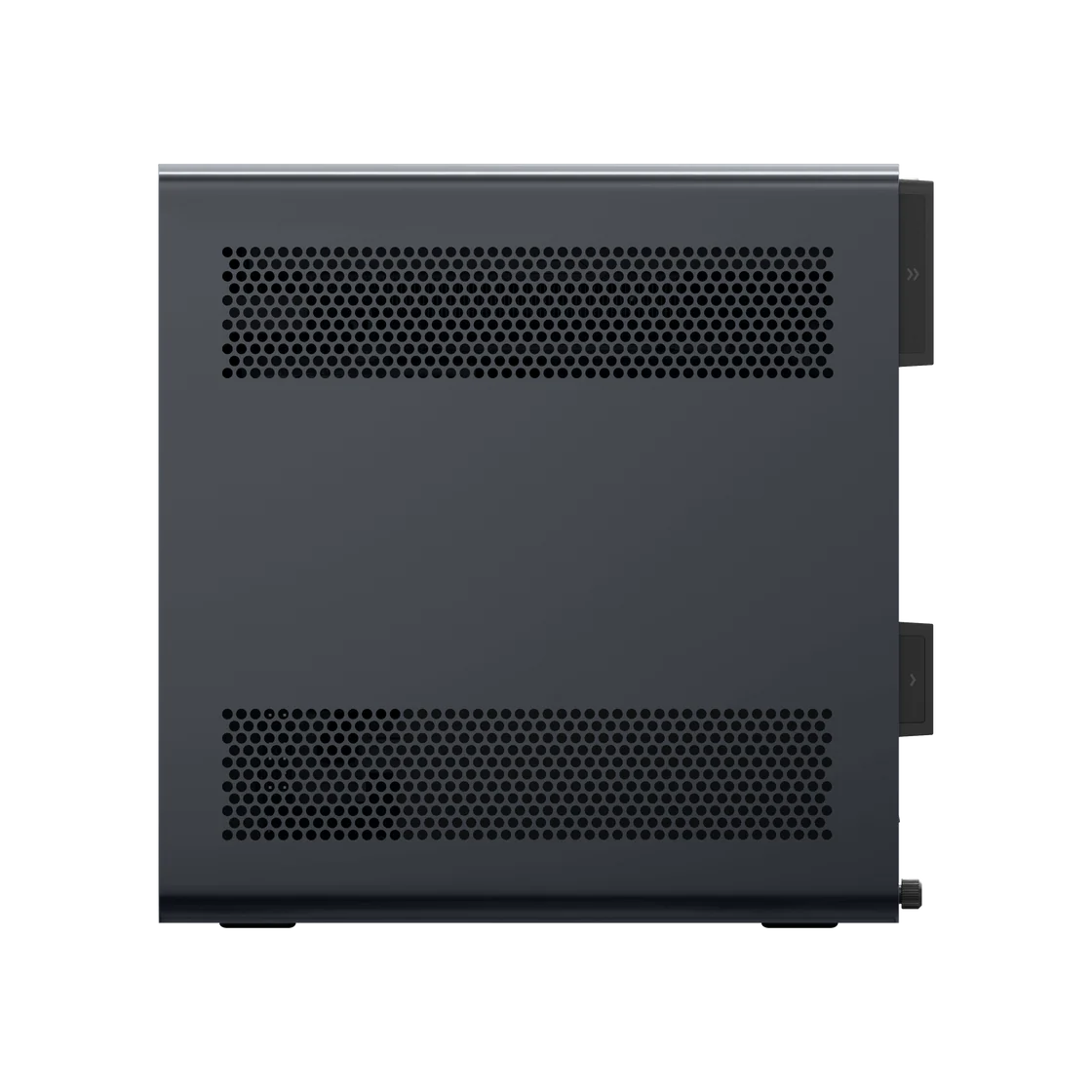

Minisforum MS-02 Ultra

This is the headingEngineering the Future Redefining Mini Workstations

MS-02U

Multi-Engine Computing Core

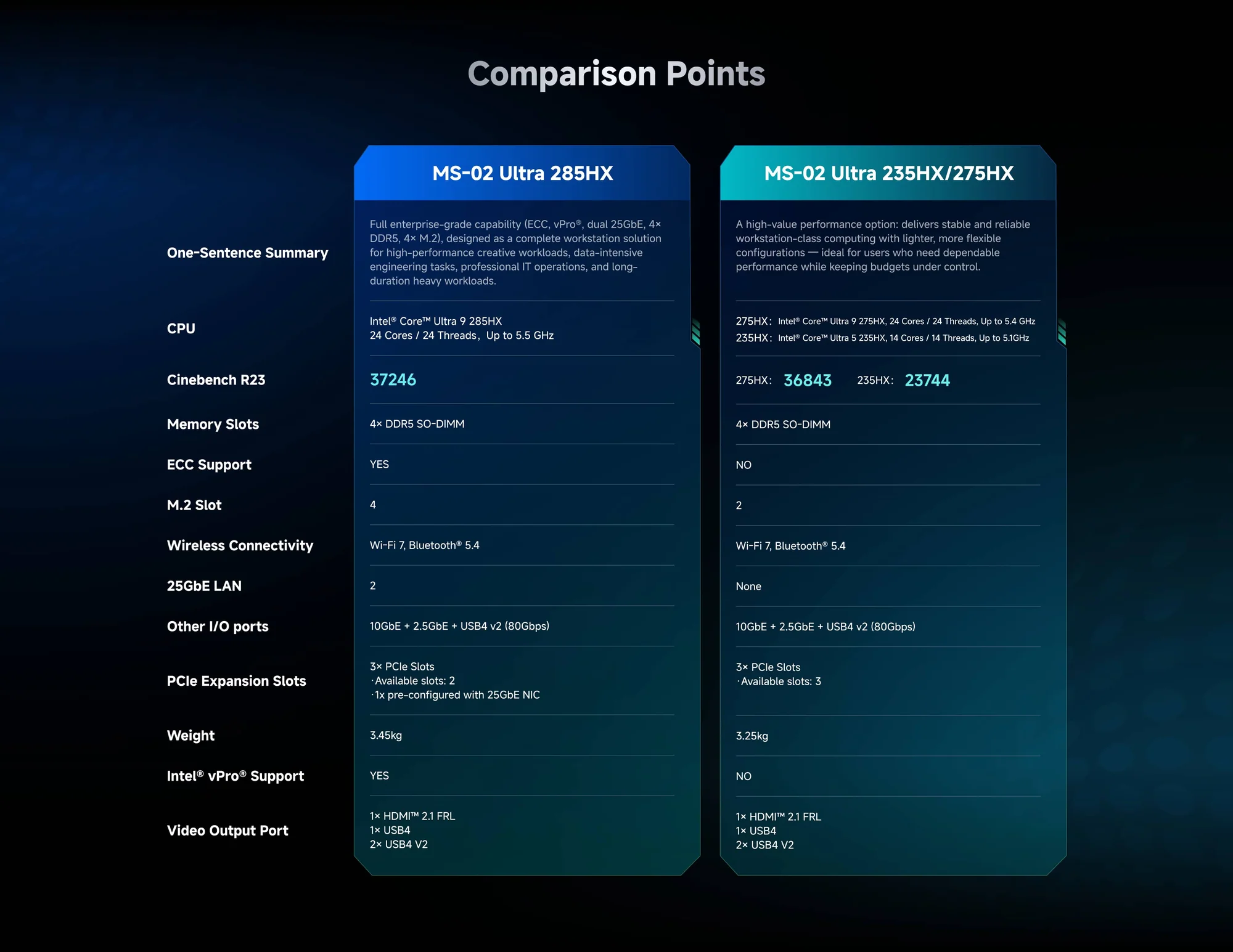

Powered by Intel® Core™ Ultra 9 285HX with a 24-core CPU (8P + 16E) and a 13 TOPS NPU, the system delivers both speed and efficiency for AI and media workloads, while PCIe GPU expansion unlocks advanced computing performance. * Other CPU options: – Ultra 9 275HX: 24 cores / 24 threads, up to 5.4 GHz – Ultra 5 235HX: 14 cores / 14 threads, up to 5.1 GHz

Spec

CPU
  • Intel® Core™ Ultra 9 285HX (24C/24T)
  • Max Turbo Frequency: 5.5 GHz
TDP
  • 100W PL1 / 140W PL2 (Balance)
  • 90W PL1 / 110W PL2 (With dGPU
GPU Intel® Graphics (Internal)
AI Engine Performance Intel®AI Boost, up to 13 TOPS(NPU TOPS)
RAM 4 × DDR5 SO-DIMM slots (ECC supported; XMP overclocking not supported)
SSD
  • 2 × M.2 2280 NVMe SSD slots (PCIe 4.0 x4 , Up to 8TB each)
  • 2 × M.2 2280 NVMe SSD slots (integrated on the 25GbE NIC; up to 8 TB/slot PCIe 3.0 ×4 or 4 TB/slot PCIe 4.0 ×4)
Heat Dissipation
  • Six-heatpipe radiator with Phase Change Material (PCM)
  • Dual Fans: 1 x 70x25mm + 1 x 60x20mm
  • Max Fan Speed: 5000 RPM
Wireless Connectivity Wi-Fi 7 & Bluetooth® 5.4 (Module:Intel® BE200)
Ethernet Controller
  • 1 × 10 GbE LAN RJ45
  • 1 × 2.5 GbE LAN RJ45
Video Output
  • ​1 x HDMI™ 2.1 FRL​ (8K@60Hz, 4K@120Hz)
  • ​1 x USB4 with DP Alt Mode​ (8K@60Hz, 4K@120Hz)
  • 2 x USB4 V2 with DP Alt Mode ​(8K@60Hz, 4K@120Hz)
Audio Output
  • 1 х HDMI™
  • 1 х USB4
  • 2 х USB4 V2
  • 1 х 3.5mm Audio Jack
Audio Input 3.5mm Combo Jack(TRRS) х1

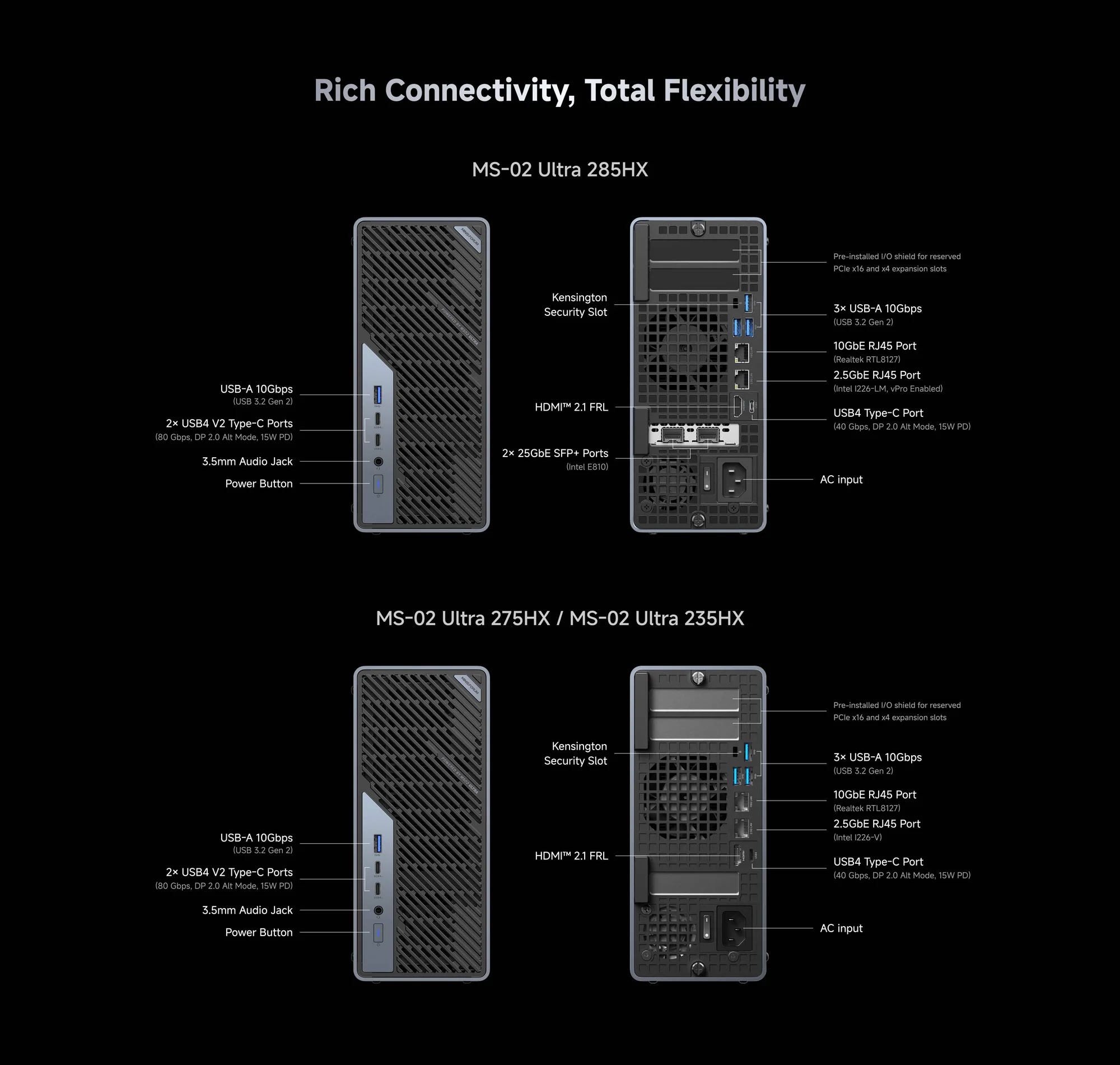

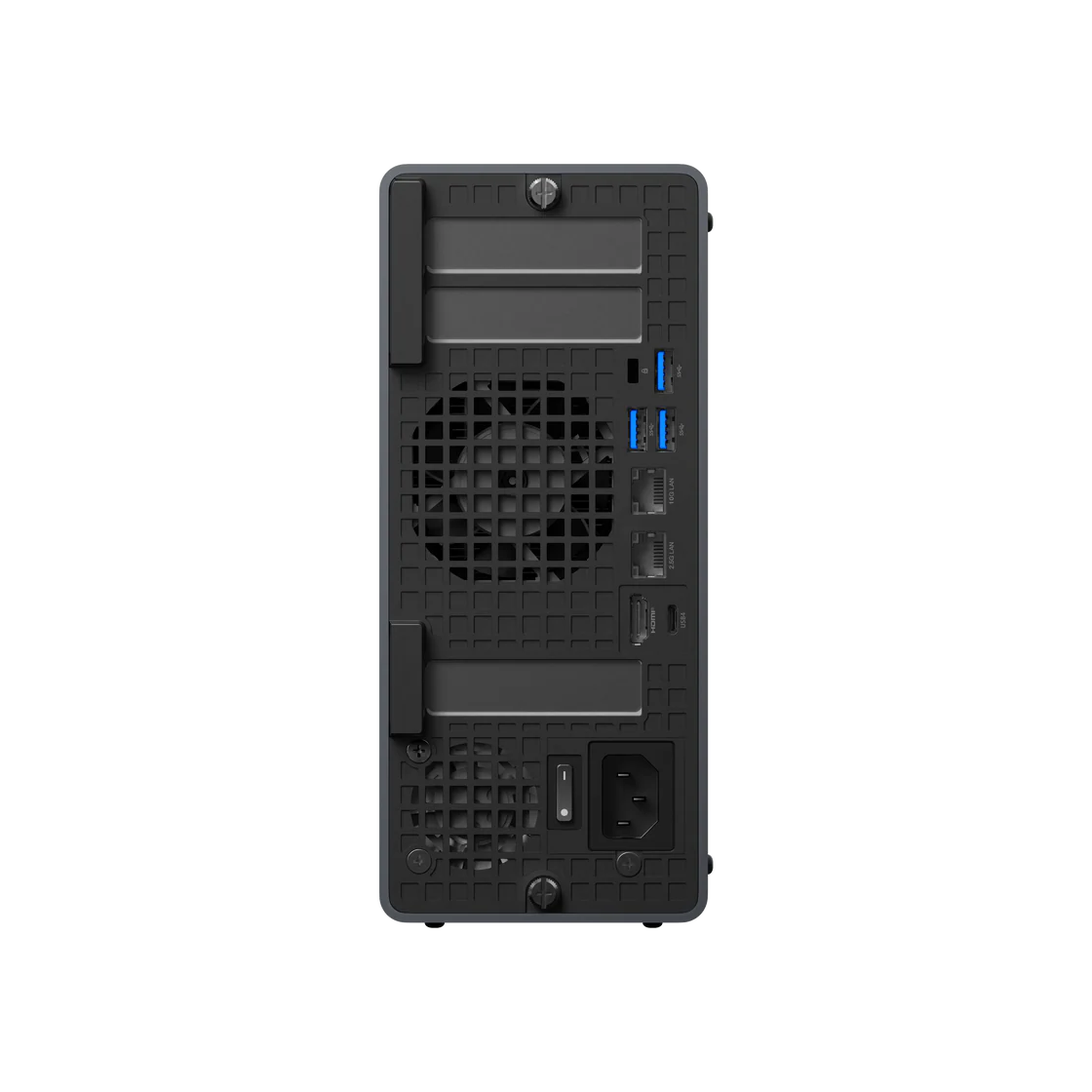

I/O Ports (Rear)
  • 1 x 10GbE RJ45 Port (Realtek RTL8127)
  • 1 x 2.5GbE RJ45 Port (Intel I226-LM, vPro Enabled)
  • 1 × HDMI™ 2.1 FRL​
  • 1 x USB4 Type-C Port​(40 Gbps, DP 2.0 Alt Mode, 15W PD)
  • 3 x USB-A 10Gbps(USB 3.2 Gen 2)

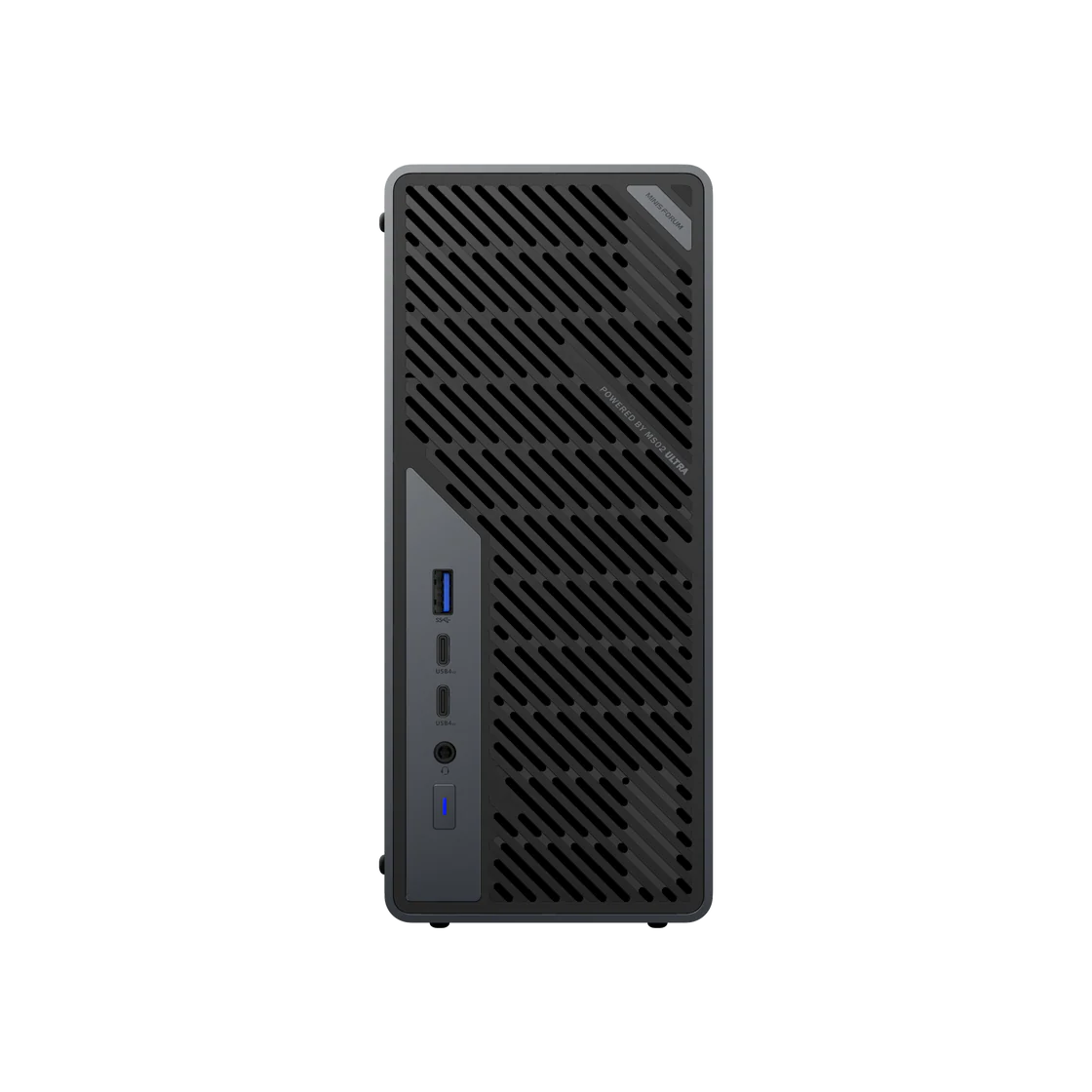

I/O Ports (Front)
  • ​2 x USB4 V2 Type-C Ports​(80 Gbps, DP 2.0 Alt Mode, 15W PD)​
  • 1 x USB 10Gbps Type-A Port​(USB 3.2 Gen 2)​
  • 1 x 3.5mm Audio Jack​​
  • 1 x Power Button
I/O Ports (Internal)
  • 1 × PCIe​5.0 x16 Slot (bifurcation support )
  • 1 × PCIe​4.0 x16 Slot​(PCIe​4.0 x4+x4+x4)​
  • 1 × PCIe​4.0 x4 Slot
OS Support Windows 11 Pro
Power AC input (100-240V ~6A 50-60Hz, 1U 350W MAX)
