MINISFORUM MS-S1 MAX

Powerful Intelligence Enabling Future Possibilities

Ultimate Computing for Next-Gen AI

APU

Powered by AMD Ryzen™ AI Max+ 395, integrating Zen5 CPU, RDNA 3.5 GPU, and a next-gen NPU. With 16 cores and 32 threads delivering RTX 4070 Laptop-level GPU performance plus 50 TOPS NPU acceleration, it achieves more efficient AI inference.

126 TOPS

Delivers up to 126 TOPS, with AI performance tested at 2.2× that of RTX 4090, effortlessly handling everything from LLMs to multimodal generation.

UMA

Supports up to 128GB LPDDR5x-8000MT/s quad-channel memory, eliminating traditional VRAM bottlenecks for low-latency, high-speed data transfer.

Peak Power

160W peak power, 130W sustained load, ensuring long-term high-intensity compute stability.

From Desktop to Rack Building an Efficient Computing Hub

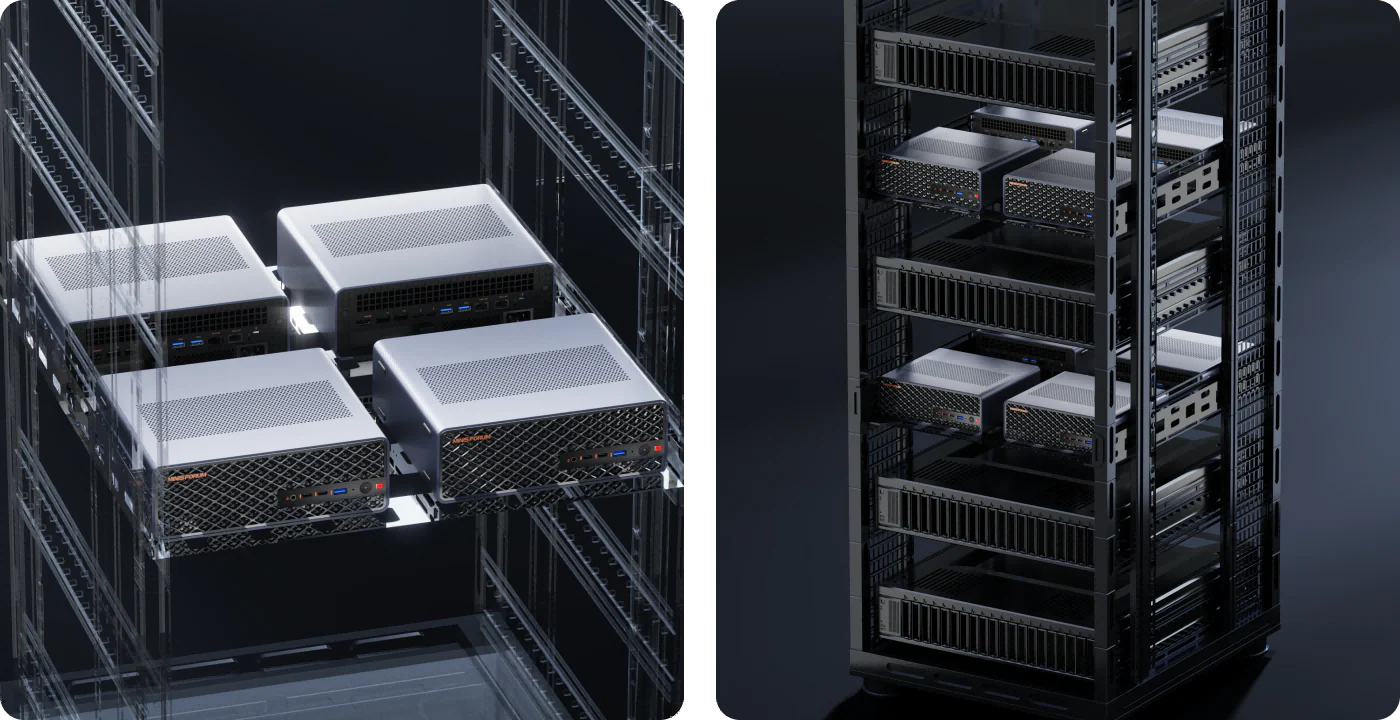

Supports 2U rack deployment, where multiple MS-S1 MAX units can be cascaded into a distributed cluster, creating an efficient AI computing hub for enterprises and research teams.

In real-world testing, a four-unit cluster successfully ran the DeepSeek-R1 671B Q4 large model (380GB, Q4_0 quantization), marking a breakthrough in local large-model computation for compact AI workstations.

Full Connectivity and Expansion

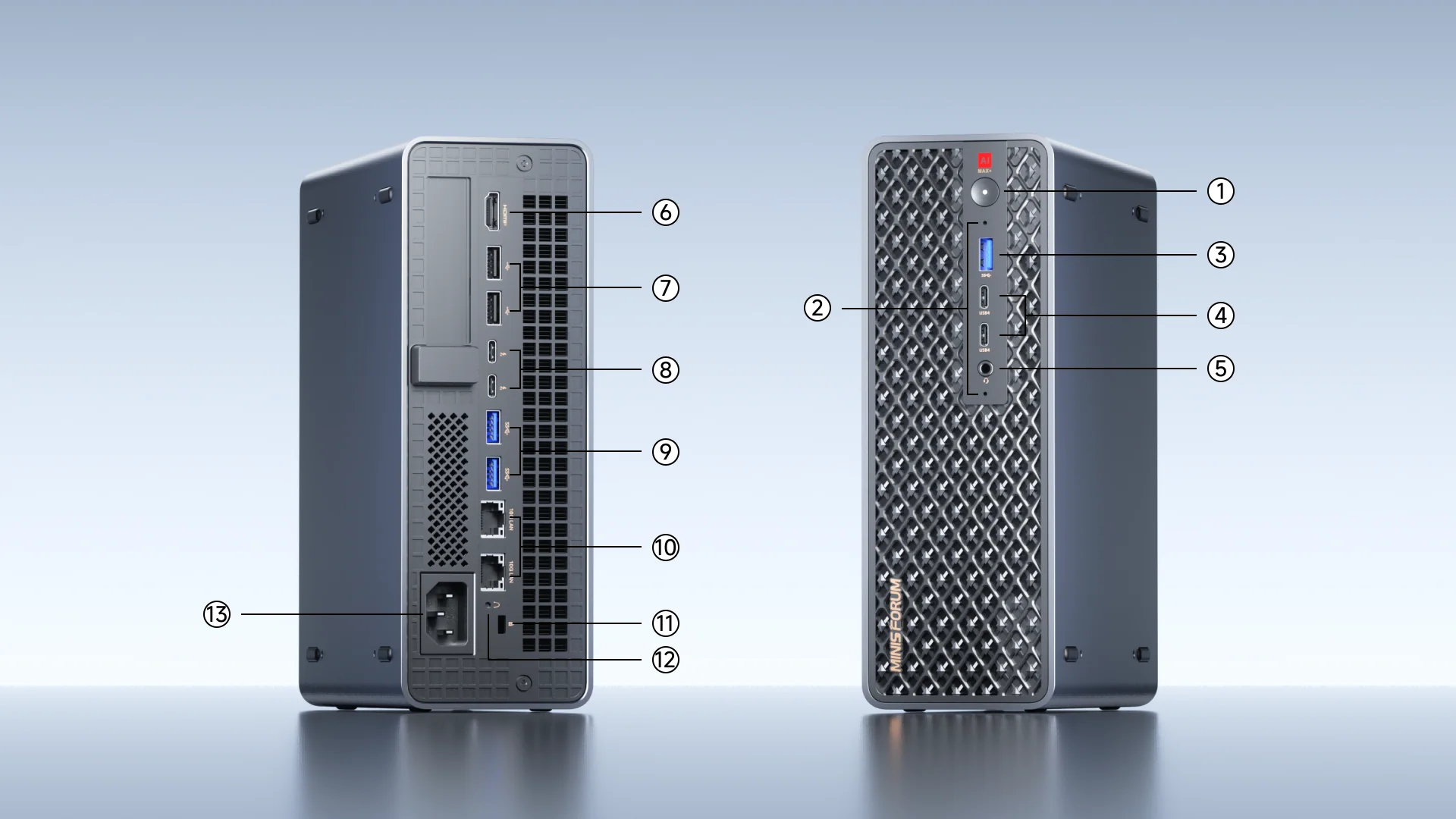

Front

1. Power Button 2. DMIC ×2 3. USB 3.2 Gen2 (10Gbps) 4. USB4 ×2 (40Gbps, Alt DP2.0, PD out 15W) 5. 3.5mm Audio Combo Jack

Rear

6. HDMI™ 2.1 FRL (Up to 8K@60Hz/4K@120Hz) 7. USB 2.0 ×2 8. USB4 V2 ×2 (80Gbps, Alt DP2.0, PD out 15W) 9. USB 3.2 Gen2 (10Gbps) 10. 10GbE LAN ×2 (RJ45, Realtek RTL8127) 11. Anti-Theft Lock Hole 12. Reset Hole (Clear CMOS) 13. AC INPUT

Minisforum MS-S1 MAX

Product Specification

Spec

CPU	AMD Ryzen™ AI Max+ 395 16 Cores, 32 Threads Max Clock: 5.1 GHz
GPU	Radeon 8060S Graphics (Internal) GPU Cores: 40 GPU Clock: 2900 MHz
TDP	Performance Mode: 130W Balanced Mode: 95W Quiet Mode: 60W
AI Engine Performance	AMD Ryzen™ AI NPU Computing Power: Up to 50 TOPS Total Computing Power: Up to 126 TOPS
RAM	LPDDR5x-256Bit Max frequency support: 8000MHz Max capacity support: 128GB
SSD	1× M.2 2280 NVMe SSD slot (supports up to 8TB, PCIe 4.0 ×4) 1× M.2 2280 NVMe SSD slot (supports up to 8TB, PCIe 4.0 ×1)
Heat Dissipation	6 Heat Pipes & Phase Change Material Dual Turbine Fans Max CPU Fan Speed: 3600 RPM
Wireless Connectivity	Wi-Fi 7 \| Bluetooth® 5.4
2× 10GbE LAN (RJ45)	2× 10GbE LAN (RJ45)
Video Output	1× HDMI (up to 8K@60Hz/4K@120Hz) 2× USB4 (up to 8K@60Hz/4K@120Hz) 2× USB4 V2 (up to 8K@60Hz/4K@120Hz)
Audio Output	HDMI ×1 3.5mm Audio Combo Jack (TRRS) ×1
Audio Input	DMIC ×2 3.5mm Audio Combo Jack (TRRS) ×1
I/O Ports (Front)	2× USB4 (40Gbps, Alt DP 2.0, PD out 15W) 1× USB 3.2 Gen2 (10Gbps) 1× 3.5mm Audio Combo Jack (TRRS) 2× DMIC
I/O Ports (Rear)	1× 10GbE LAN (RJ45, Realtek RTL8127) 1× 10GbE LAN (RJ45, Realtek RTL8127) 2× USB 3.2 Gen2 (10Gbps) 2× USB 2.0 2× USB4 V2 (80Gbps, Alt DP2.0, PD out 15W) 1× HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
I/O Ports (Internal)	PCIe ×16 slot (PCIe 4.0 ×4)
Pre-Installed System	Windows 11 Pro
Power	AC INPUT (100-240V ~6A 50-60Hz, Internel-DC 12V/26.6A, 320W MAX)
Dimensions	222.1 × 206.3 × 77.1 mm
Weight	2.8 kg
