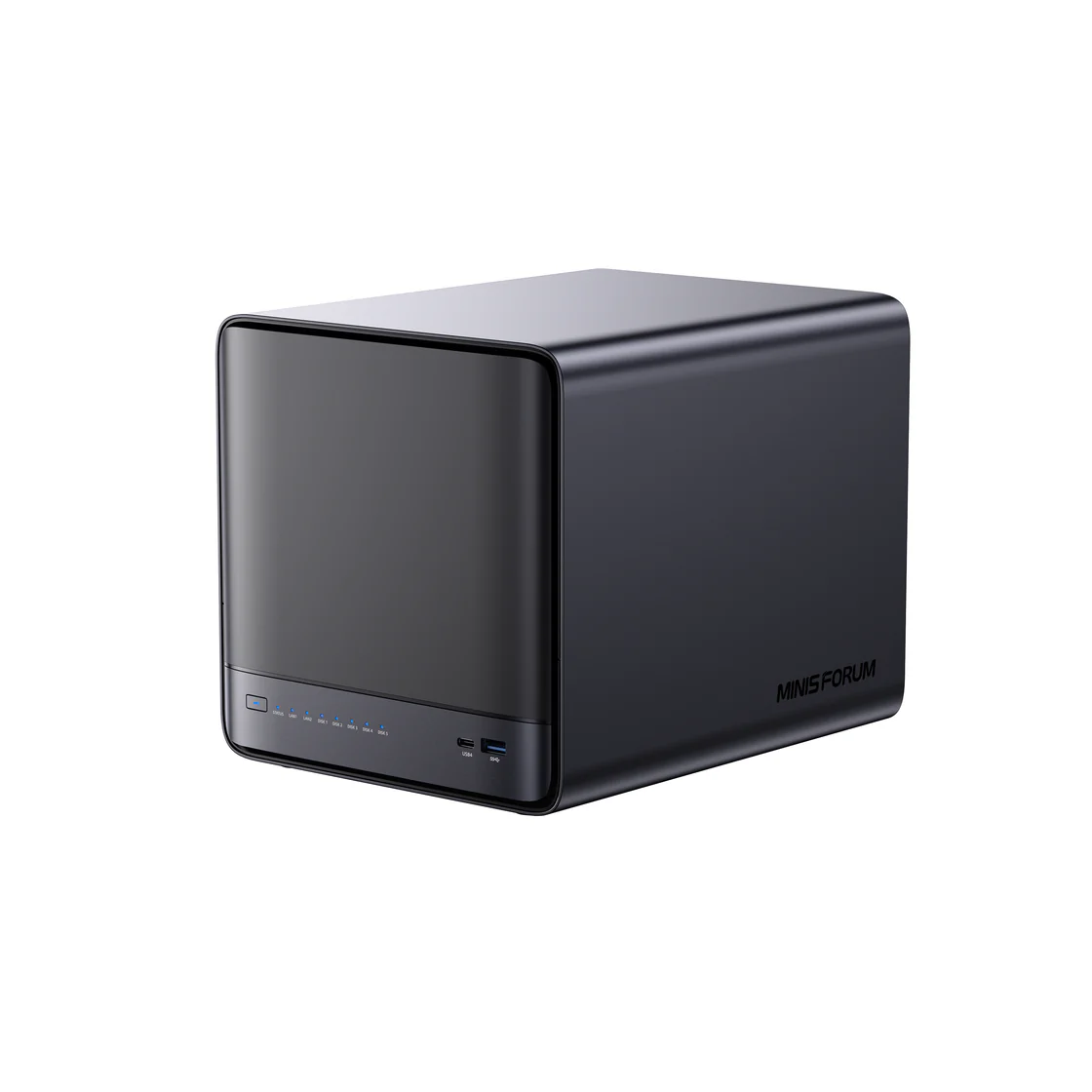

MINISFORUM N5 AI NAS

PC_3c00633a-b48e-49fb-8017-346c9a05728e

More VMs, Smoother Data

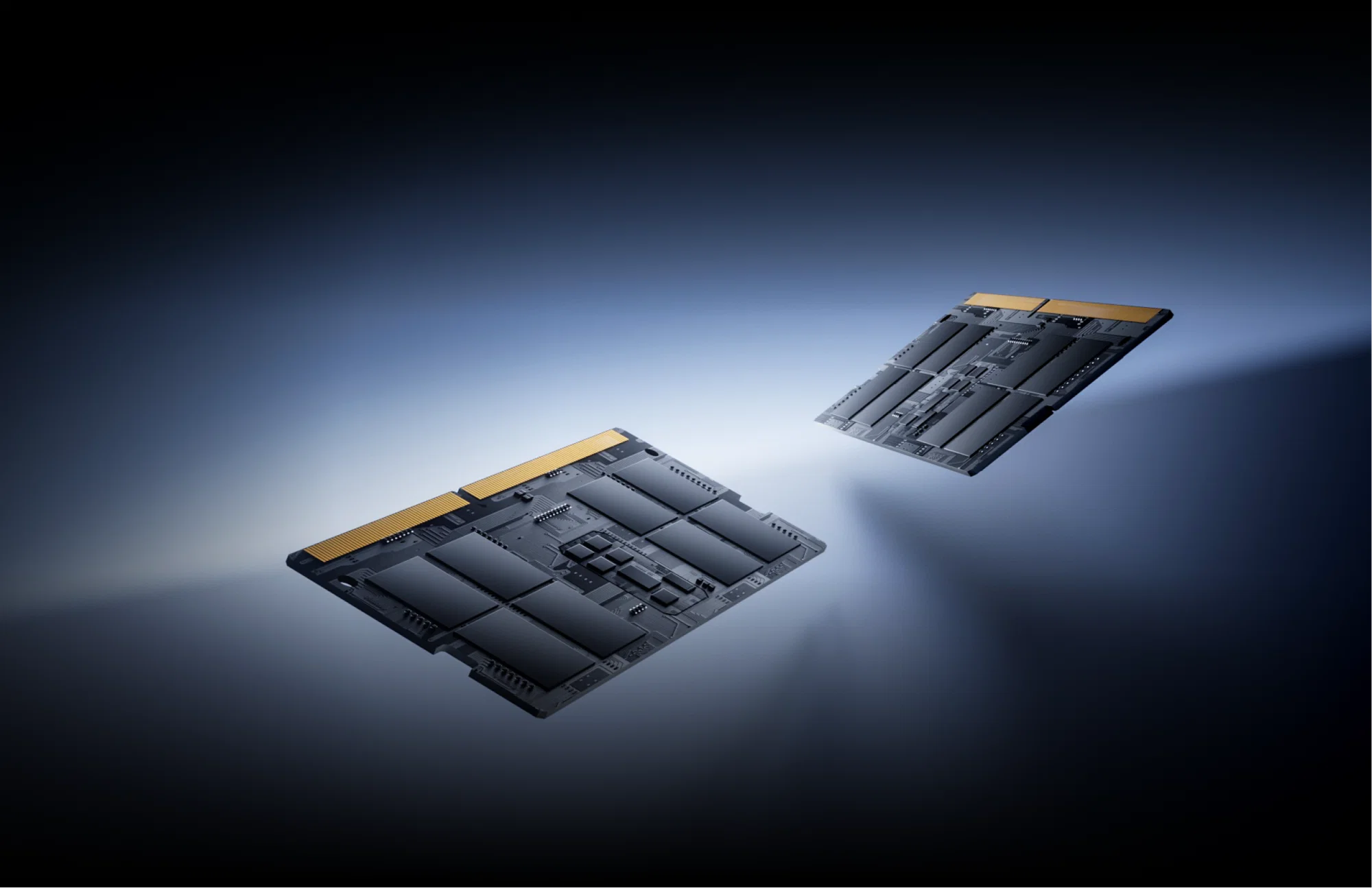

High-Capacity Memory, Limitless Performance Supports up to 96GB of DDR5 memory to handle multitasking and other performance-intensive workloads. Smoother Data Flow: DDR5 5600 offers 75% more bandwidth than DDR4, ideal for high-concurrency and large file handling, supporting up to 96GB memory

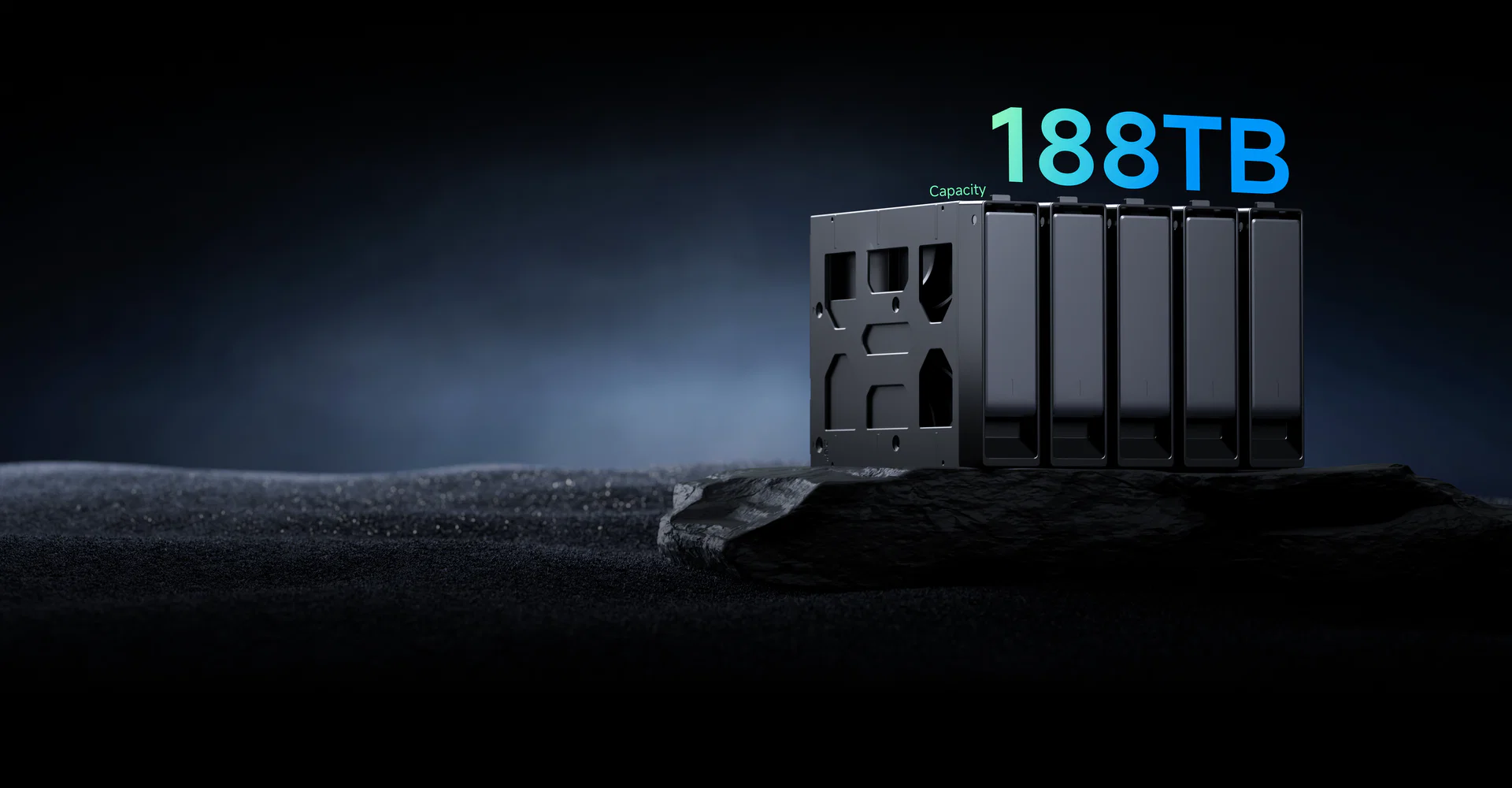

188TB Capacity Unleash Storage Flexibility

HDD Bays

Supports 5 × 30TB 3.5" HDDs Total capacity: up to 150TB
01_68d161ac-e608-4329-987e-3a349990e088_1_2000x

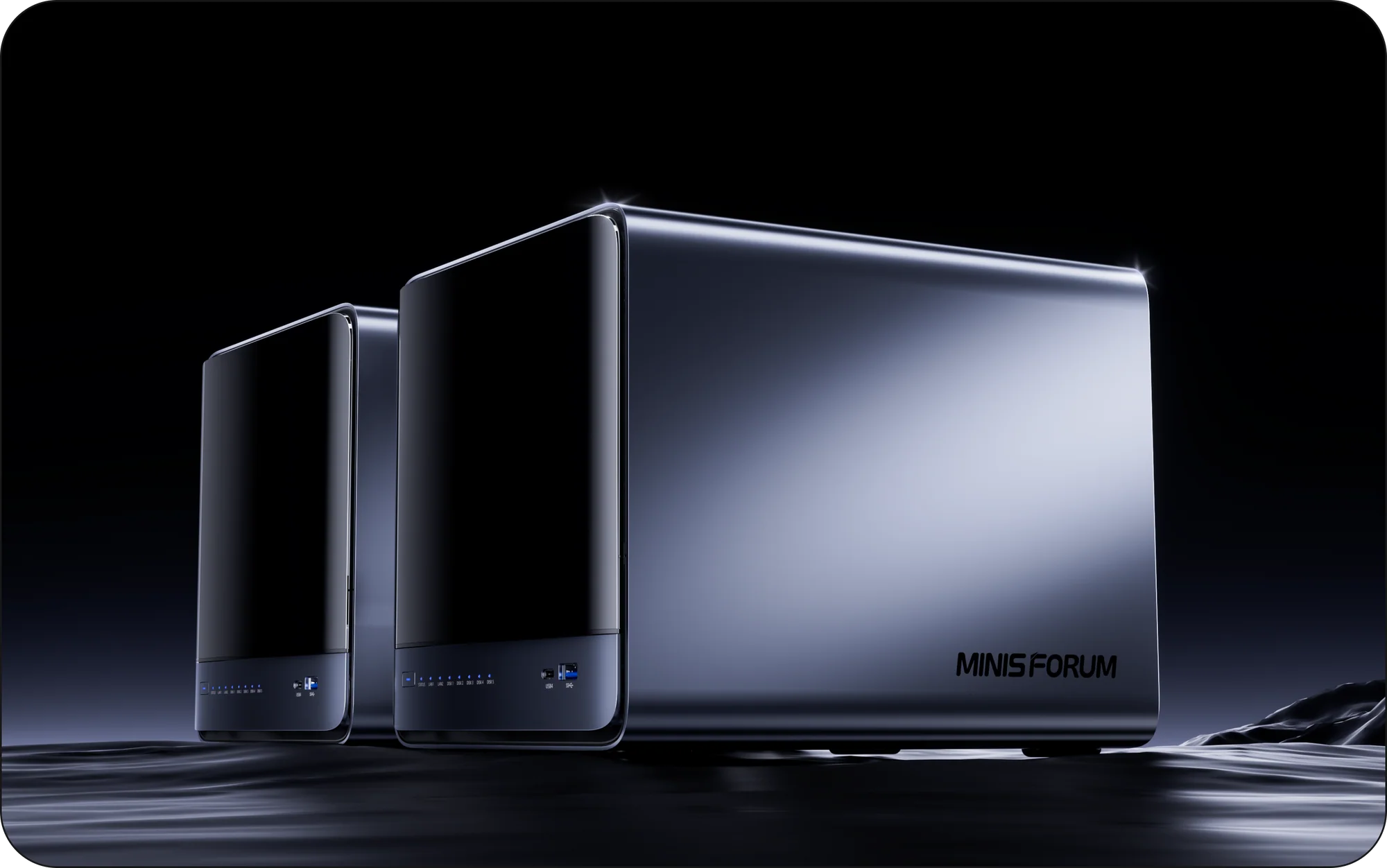

Revolutionary 5-Bay Design, More Capacity.

A Compact 199×202×252mm frame holds 5 drives in a 4-bay space, delivering 25% more storage.
PC_-02_2000x

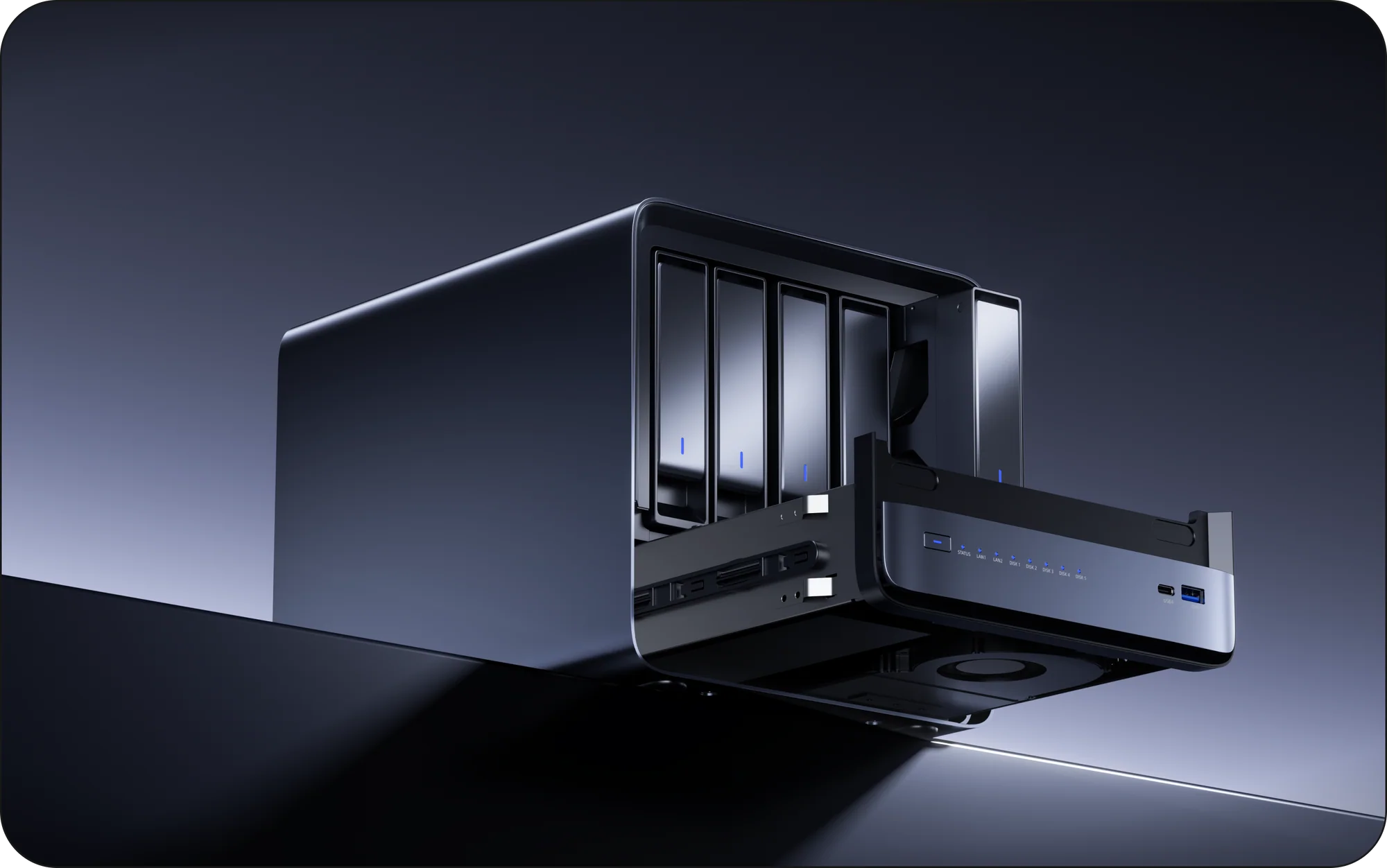

Slide-Out Design for Easy Drive Swaps.

Minisforum's slide-out motherboard allows quick RAM and SSD upgrades, simplifying maintenance. Modular design supports standard RAM, avoiding onboard limits for flexible upgrades.

Spec

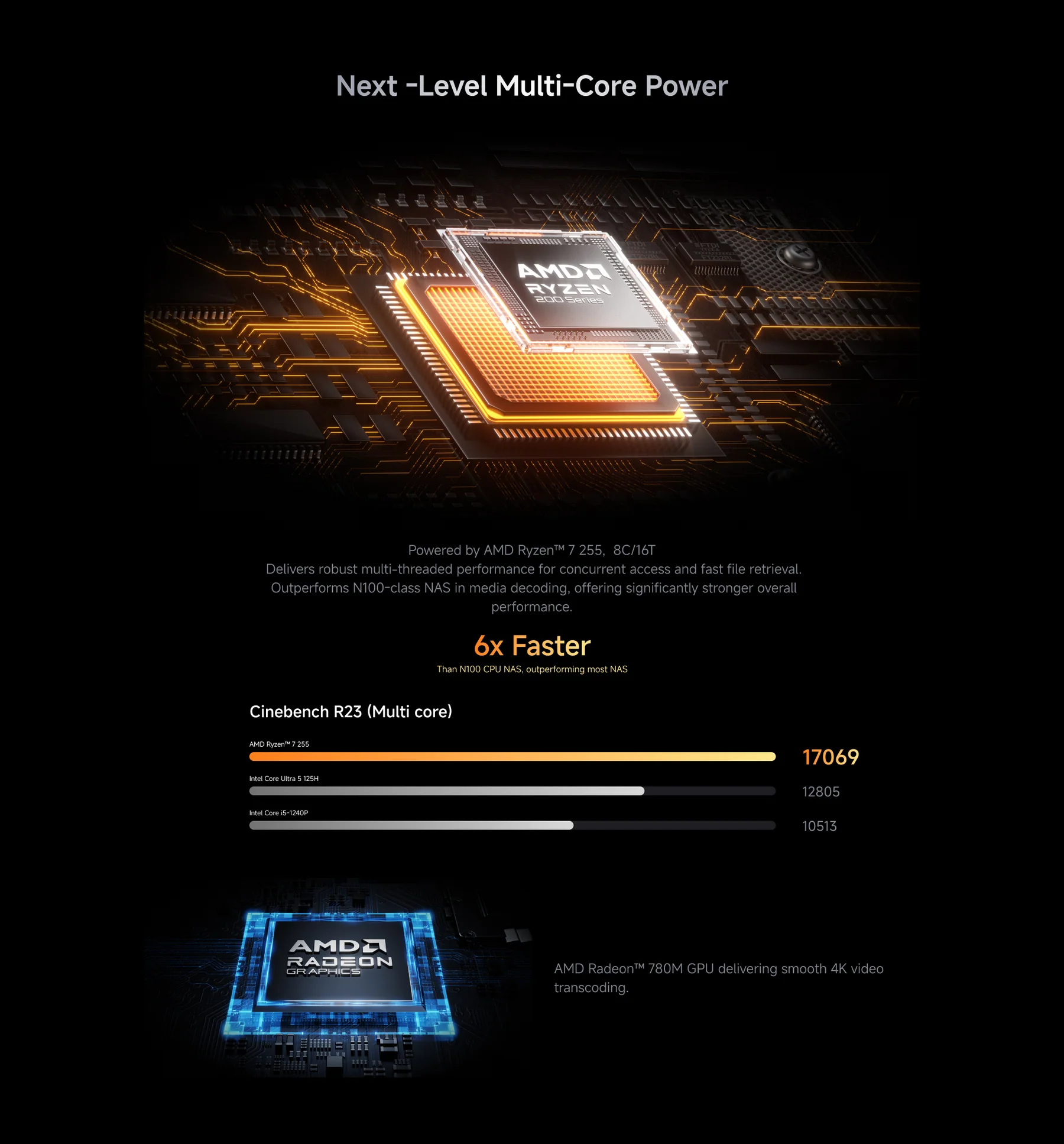

CPU AMD Ryzen™ 7 255

8C/16T,max.4.9GHz
GPU AMD Radeon™ 780M
Memory DDR5 SO-DIMM х 2 (Non-ECC)

Max.5600MT/s,up to 96GB
Storage
  • 5 x 3.5/2.5 inch HDD(Up to 30TB/disk,SATA 3.0)
  • 1 x M.2 2230/2280/22110 NVME SSD(up to 8TB,PCIE4.0 x1)
  • 1 x U.2/M.2 2280/22110 NVME SSD(up to 15TB,PCIE4.0 x1)
  • 1 x U.2/M.2 2280/22110 NVME SSD(up to 15TB,PCIE4.0 x2)

Optional SKU SSD Capacity : 128GB M.2 2280 SSD
Ethernet Controller
  • 10GbE LAN port (LAN2,RJ45,RTL8127 / AQC113) x 1
  • 5GbE LAN port (LAN1,RJ45,RTL8126) x 1
LED
  • Status LED x 1(Front)
  • NIC LED x 2(Front)
  • HDD LED x 5(Front)
Video Output
  • HDMI x1 (Up to 8K@60Hz/4K@144Hz)
  • USB4 x 2 (Up to 8K@60Hz/4K@144Hz)
Audio Output
  • HDMI х 1
  • USB4 x 2
I/O Port
  • USB4(Alt DP 2.0)x 1
  • USB 3.2 Gen2 х 1
  • USB4(Alt DP 2.0)x 1
  • HDMI 2.1 FRL х 1
  • OCuLink port х 1
  • 10GbE LAN port (LAN2,RJ45,RTL8127 / AQC113) x 1
  • 5GbE LAN port (LAN1,RJ45,RTL8126) x 1
  • USB3.2 Gen2 х 1
  • USB 2.0 х 1
  • PCIe ×16 Slot (PCIe 4.0 ×4) ×1
  • USB3.2 Gen2 х 1
Other features
  • Power Button With LED х 1
  • Reset Hole х 1
  • Anti-theft lock hole x 1
  • Buzzer x 1
Power Adapter DC 5525 19V/14.73A 280W
OS MinisCloud OS / Windows 11 Pro / Linux
Dimensions 199x202x252mm
Weight 5 KG
