MINISFORUM N5 Pro AI NAS

Next-Level Multi-Core Power

CPU

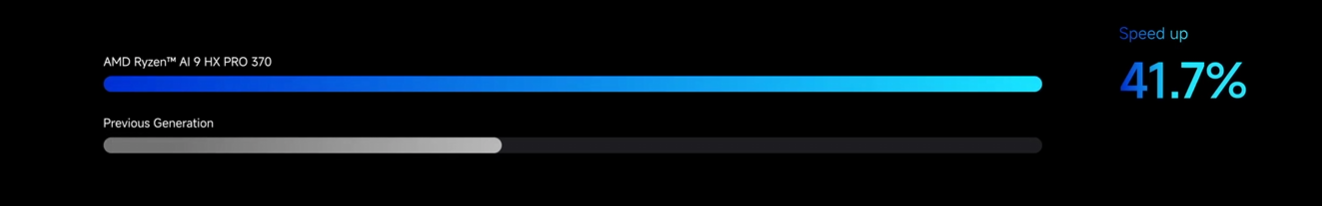

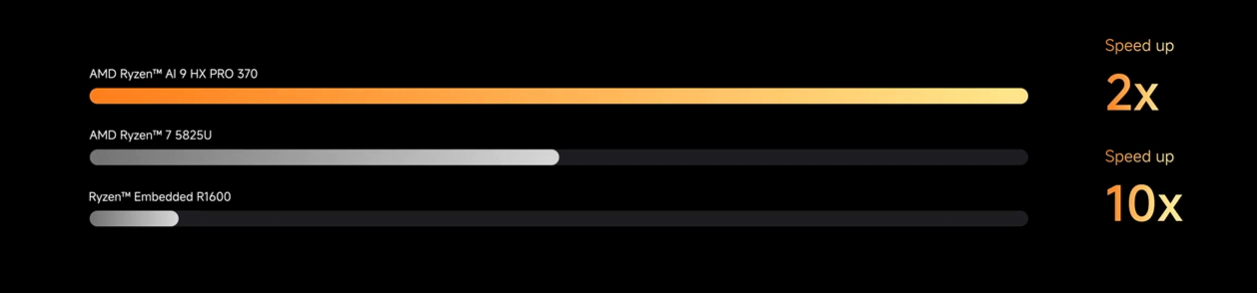

Redefines Consumer NAS Performance Standards: Powered by AMD Ryzen™ AI 9 HX PRO 370, Zen5+Zen 5C Architecture, 12 Cores and 24 Threads, Max. Boost Clock up to 5.1 GHz. Supports multi-user access and concurrent file retrieval; powered by multi-core performance for faster transfers; delivers ultra-fast media decoding, outperforming most consumer-grade NAS.

NPU

Integrated NPU delivers 50 TOPS local AI power, enabling real-time video analysis and smart task processing, significantly reducing CPU/GPU load.

GPU

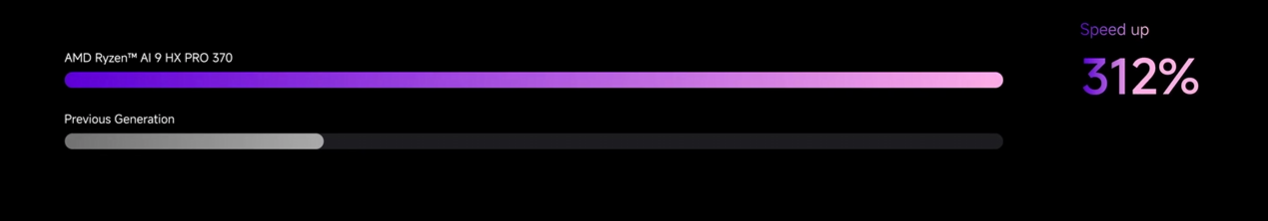

AMD Radeon™ 890M GPU with AV1/H.265 hardware encoding/decoding, delivering 4K video transcoding at 120 FPS for smooth transcoding or lightweight graphics tasks, dedefining NAS power.
d4f70b20ae08baa91175811c4f952f6f_bb484548-29f5-4dec-8b49-b16f3cb694c60ff2a2c0a2416a014252cb0d1fb4798f_2062b8d5-99fe-4109-85c1-6b5350b1d902

Spec

CPU AMD Ryzen™ AI 9 HX PRO 370 12C/24T,max.5.1GHz
GPU AMD Radeon™ 890M
NPU Up to 50 TOPS
Memory DDR5 SO-DIMM х 2 (ECC Supported) Max.5600MT/s,up to 96GB

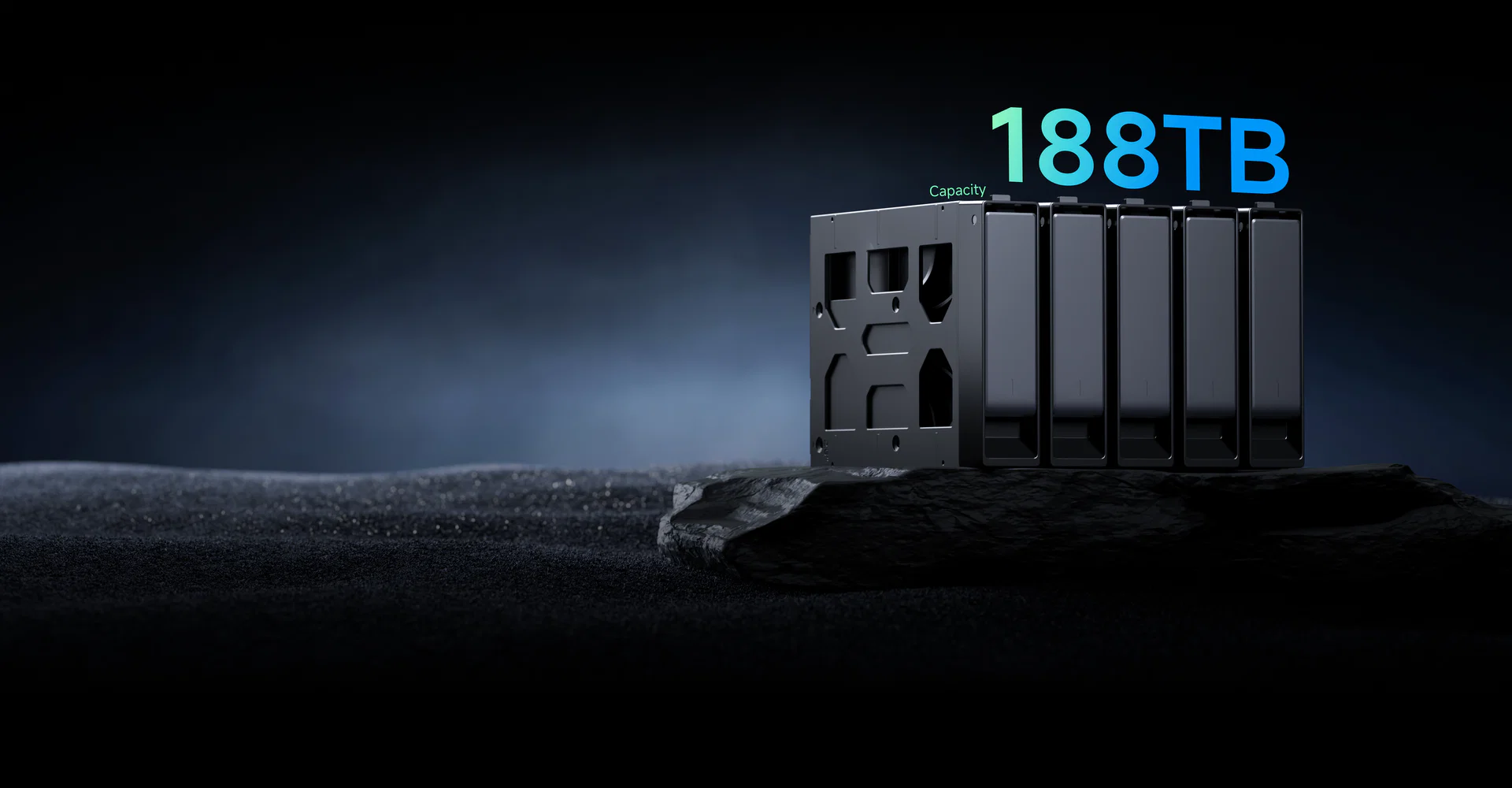

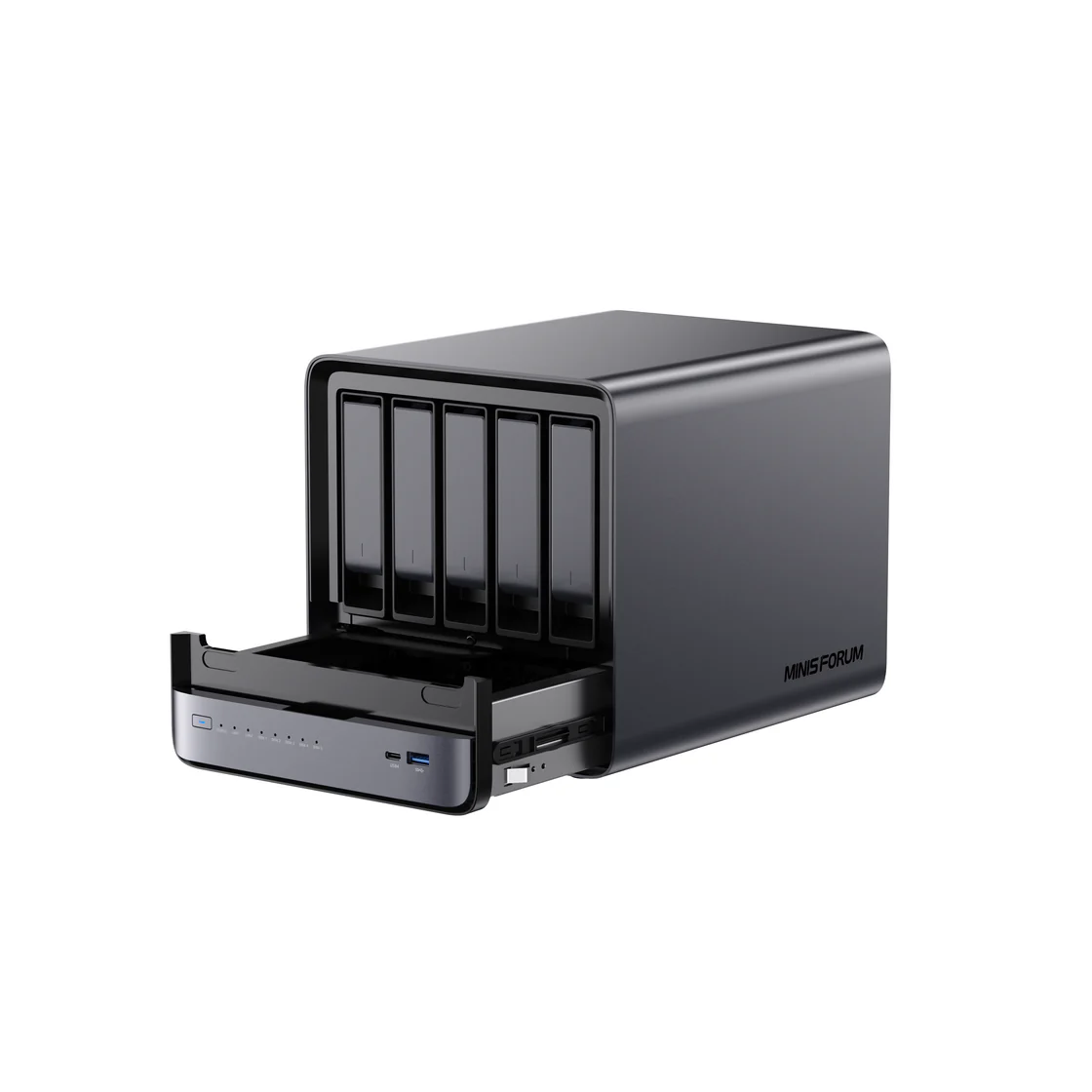

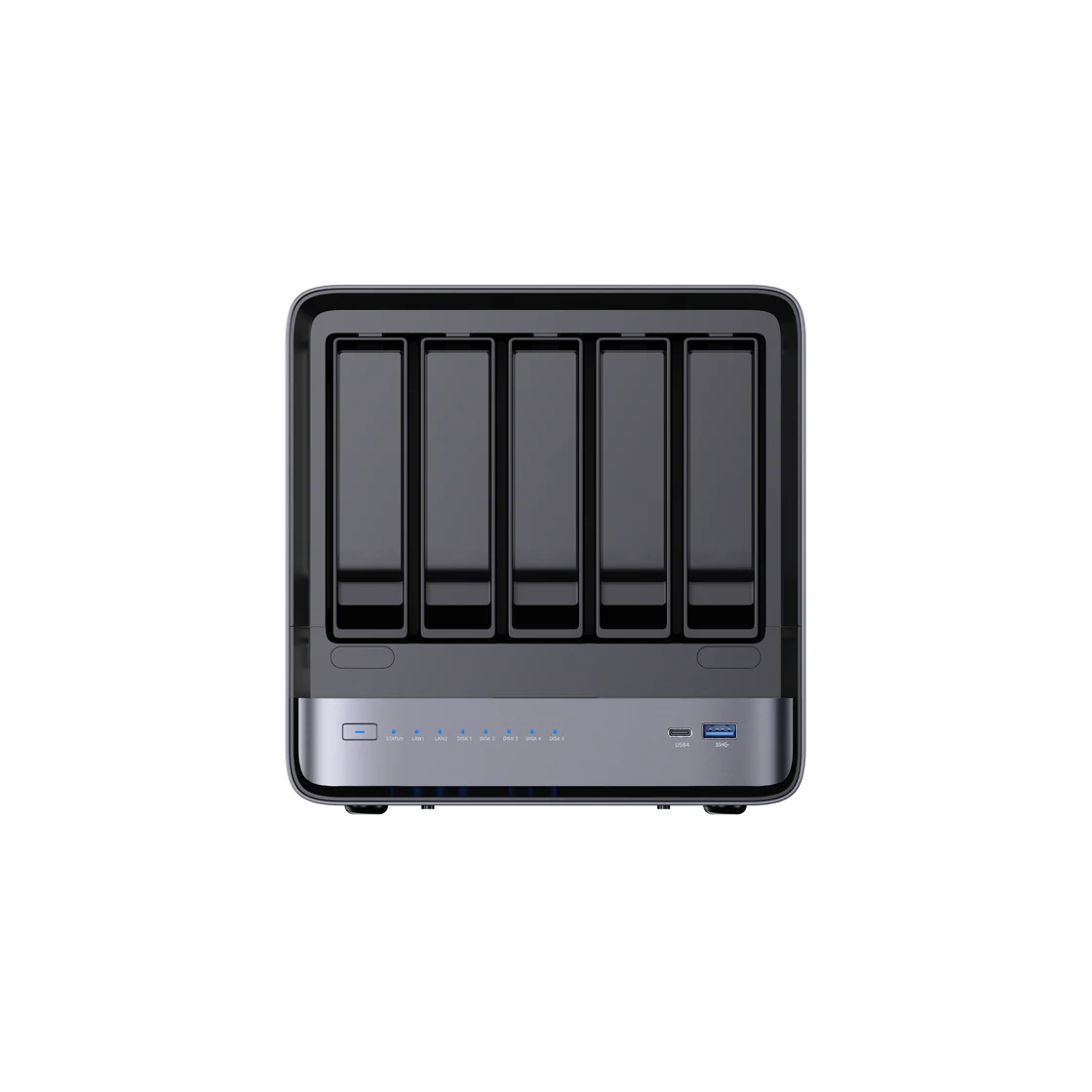

Storage
  • 5 x 3.5/2.5 inch HDD(Up to 30TB/disk,SATA 3.0)
  • 1 x M.2 2230/2280/22110 NVME SSD(up to 8TB,PCIE4.0 x1)
  • 1 x U.2/M.2 2280/22110 NVME SSD(up to 15TB,PCIE4.0 x1)
  • 1 x U.2/M.2 2280/22110 NVME SSD(up to 15TB,PCIE4.0 x2)

Optional SKU SSD Capacity : 128GB M.2 2280 SSD
Ethernet Controller
  • 10GbE LAN port (LAN2,RJ45,RTL8127 / AQC113) x 1
  • 5GbE LAN port (LAN1,RJ45,RTL8126) x 1

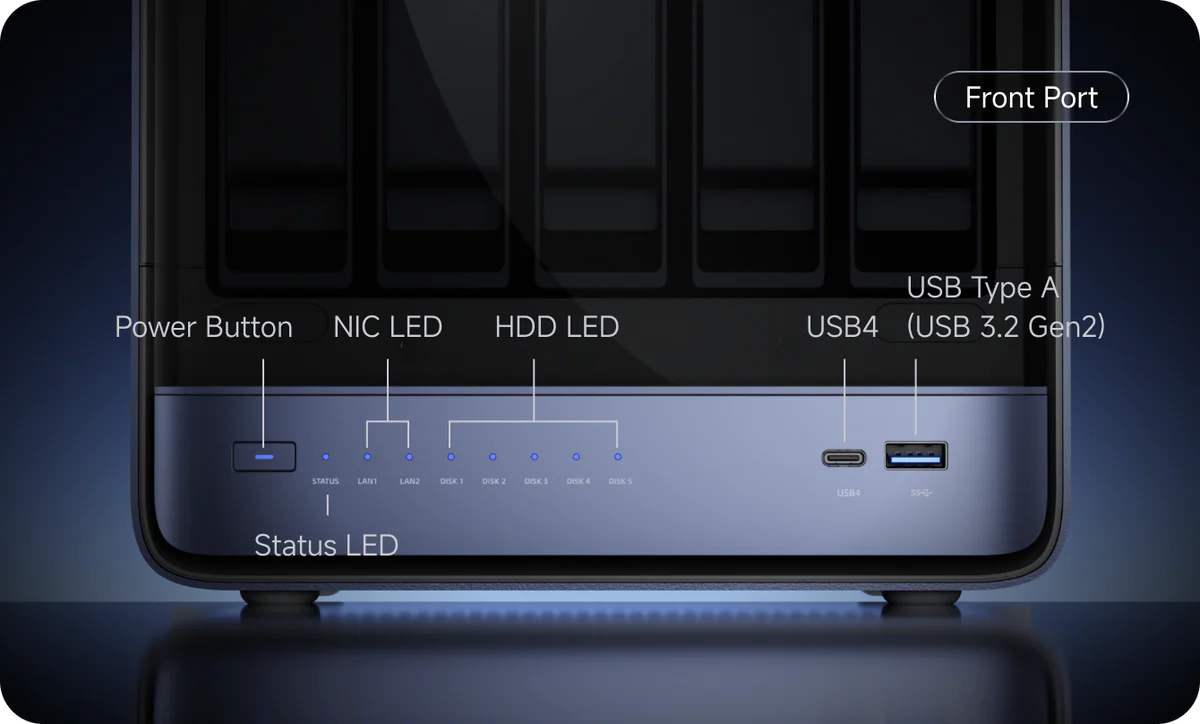

LED
  • Status LED x 1(Front)
  • NIC LED x 2(Front)
  • HDD LED x 5(Front)
Video Output
  • HDMI x1 (Up to 8K@60Hz/4K@144Hz)
  • USB4 x 2 (Up to 8K@60Hz/4K@144Hz)
Audio Output
  • HDMI х 1
  • USB4 x 2

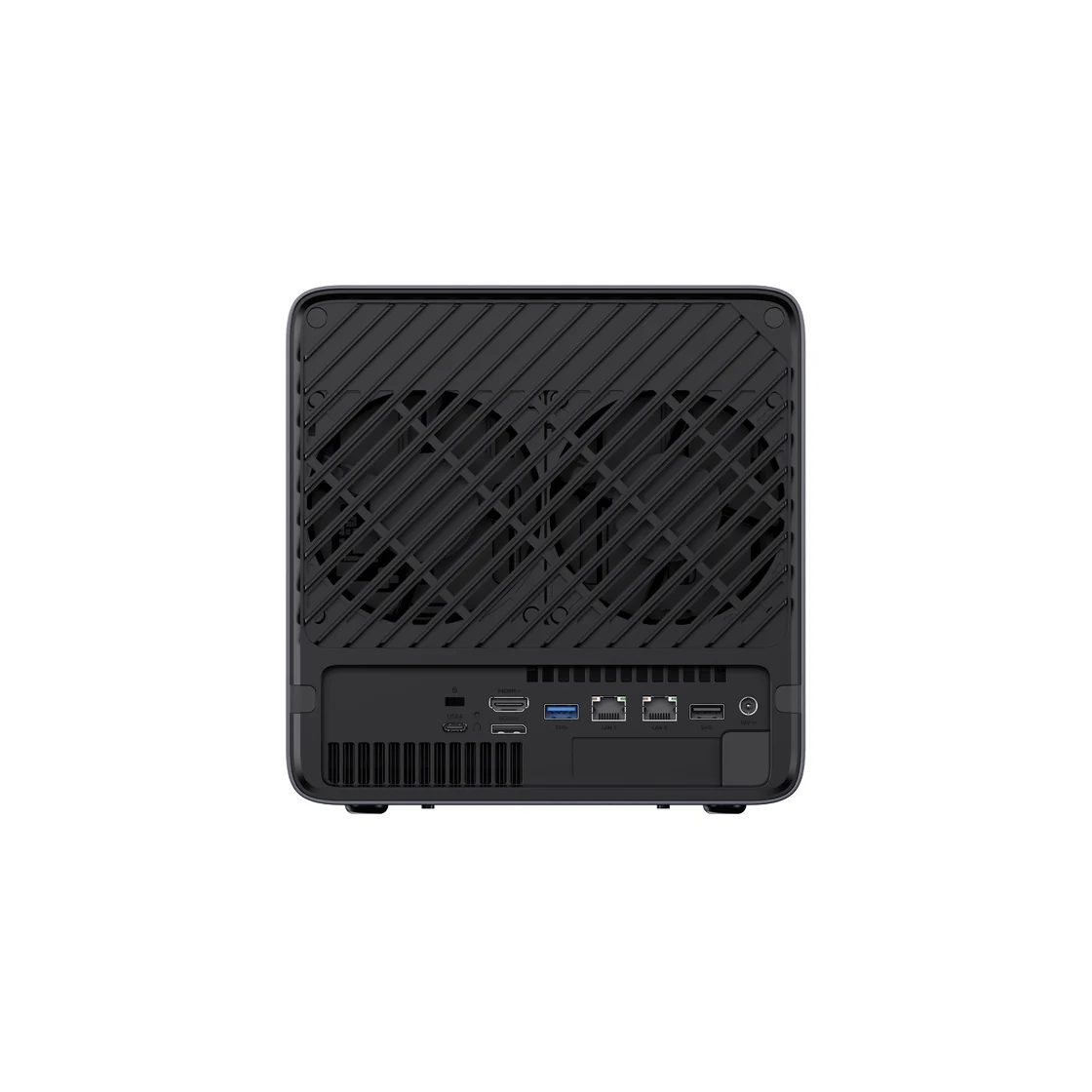

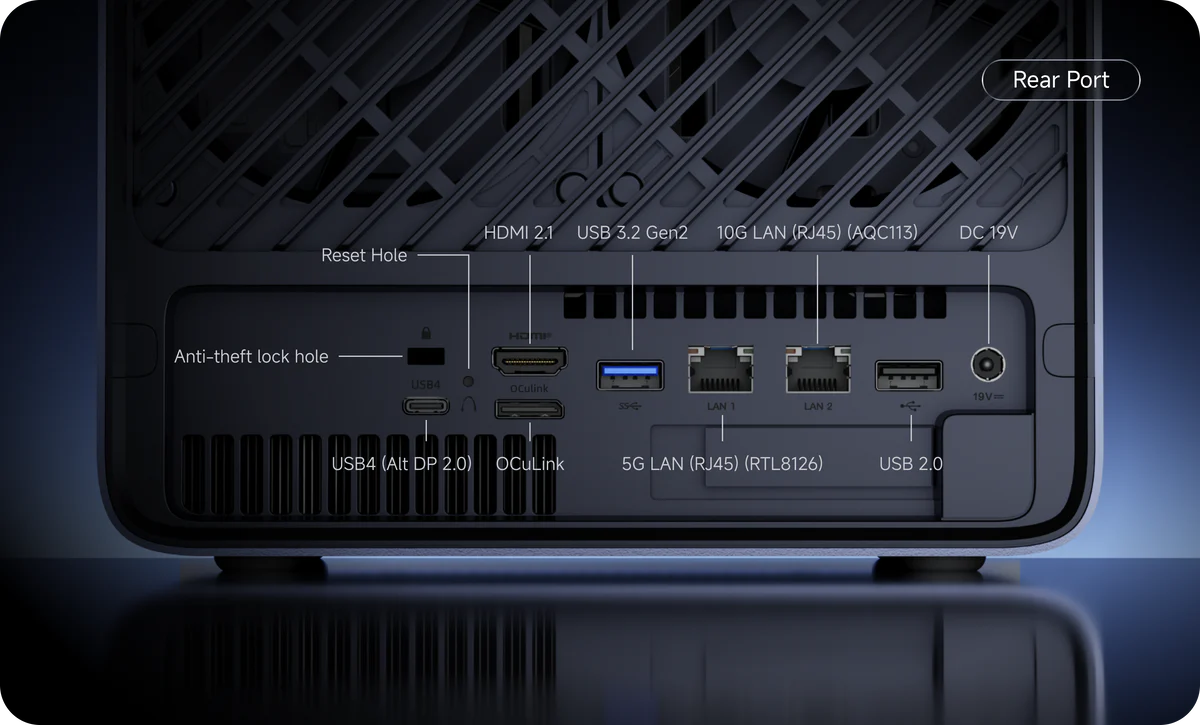

I/O Port
  • USB4(Alt DP 2.0)x 1
  • USB 3.2 Gen2 х 1
  • USB4(Alt DP 2.0)x 1
  • HDMI 2.1 FRL х 1
  • OCuLink port х 1
  • 10GbE LAN port (LAN2,RJ45,RTL8127 / AQC113) x 1
  • 5GbE LAN port (LAN1,RJ45,RTL8126) x 1
  • USB3.2 Gen2 х 1
  • USB 2.0 х 1
  • PCIe ×16 Slot (PCIe 4.0 ×4) ×1
  • USB 3.2 Gen2 × 1
Other features
  • Power Button With LED х 1
  • Reset Hole х 1
  • Anti-theft lock hole x 1
  • Buzzer x 1
Power Adapter DC 19V/14.73A (5525mm) 280W
OS Support MinisCloud OS / Windows 11 Pro / Linux
Dimensions 199x202x252mm
Weight 5 KG
